Dynamics of Cam Mechanical Systems

Dynamics of Cam Mechanical Systems

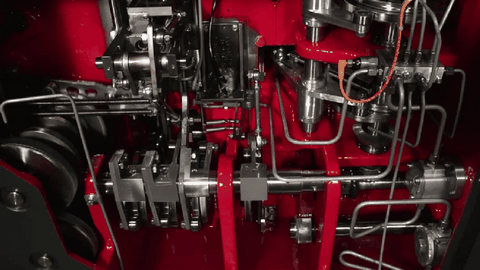

Packaging Machine with Cams. Courtesy of Lareka NL

Example Cams in an enclosure with forced oil lubrication

The Cam Mechanical System includes all of the mechanical components from the Power Source (usually an AC Motor or a Servo) to the Tooling.

MechDesigner calculates the Application-Load or Torque that a motor must provide to move each mechanism with the motion you have designed for it with MotionDesigner.

MechDesigner also calculates the active and reactive forces at each joint as they move. These forces and torques are called kinetostatic-forces. It is important to know that kinetostatic-forces do not consider the parasitic effects of elasticity, backlash, friction, motor speed variation, ... .

These parasitic effects increase the difference between the actual and designed motion for the tooling. A design that does not consider the parasitic effects can lead to a poor motion response at the tooling.

This section reviews the parasitic effects on the performance of Cam Mechanical Systems. We also suggest how to improve your designs.

There is an emphasis on the Traditional Motion-Laws that are applied to mechanisms with Dwell-Rise-Dwell type motions. This is because their causes and effects on the mechanical system are easier to understand, and we obtain valuable design insights. You should be able to apply these insights even when you need to design a complex motion for a complex mechanism.

Dynamics of Cam Mechanical Systems

➢Rigidity - Transmission Design Considerations

➢Effective Masses and Spring-Rates across a Lever Ratio

➢Example 1: Rigidity Input-Transmission

➢Example 2: Rigidity Output-Transmission

➢Dynamic Response: Period-Ratio, Damping, Backlash

➢Example 3: Natural Frequency, Output-Transmission

➢Load Types, Normalized Loads, Input Torque

➢Overrun and Power

➢Example 4: Indexing Table with Backlash

➢Example 5: Torque to Drive an External Load

➢Gearing-Effects

➢Example 6: Power Calculation
