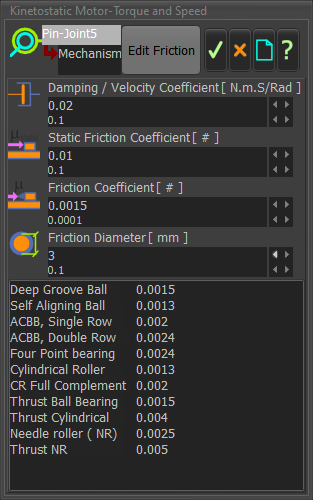

Friction of Pin-Joint dialog
Damping Velocity Coefficient, [Nm.s/rad]
When the Parts at the joint are rotating relative to each other, we use the Damping Velocity Coefficient together with the angular velocity [rad/s] of the Joint, to calculate the Torque that is needed to overcome the damping resistance
|
Static Friction Coefficient,
When the Parts at the joint are not rotating relative to each other, we use the Static Friction Coefficient, together with the Friction-Diameter and the Force at the joint, to calculate the Torque that is needed to begin rotating the joint.
|
Dynamic Friction Coefficient,
When the Parts at the joint are rotating relative to each other, we use the Dynamic Friction Coefficient, together with the Friction-Diameter and the Force at the joint, to calculate the Torque that is needed to rotate the joint.
|
Friction Diameter
We use the Friction Diameter, together with the Force and the Friction Coefficient, to calculate the torque needed to rotate the joint - see above. |
