Function-Blocks menu
The Function-Blocks menu combines the commands from two toolbars. The toolbars are to the right and above the graphics-area.
Kinematic FBs - these FBs control or analyze the motion of kinematic-chains.
Machine FBs - these FBs can improve your model in different ways.
When you show menus, the Function-Blocks menu is at the top.
The Function-Blocks menu is active ONLY when a Mechanism-Editor is active.

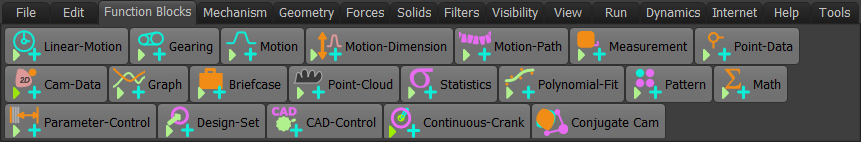

Function-Blocks menu
Function-Block toolbars
When you show toolbars, there are two toolbars with Function-Blocks.
Kinematic FB toolbar - it is to the right of the graphics-area.
Modeling FB toolbar - it is above the graphics-area.
See also: Function-Blocks: Connecting, and Data-Types and Channels
