Design Checks

Design Checklist with the Cam-Data FB

In MechDesigner, it is possible to “design” a add a cam that will in fact be difficult or impossible to operate, vibrate, jam, and have a short life.

Cam Data FB icon

Add a Cam-Data FB

... edit the FB and link the Cam-Data FB to a 2D-Cam, close the dialog.

... use a Graph FB to plot the data available at the output-connectors from the Cam-Data FB to check 2D-Cam design parameters.

See Add Cam-Data FB and Edit Cam-Data FB

Whether a cam is “Good” or “Bad” is a function of many interacting parameters. It is its capacity to perform its function duty for a specified life.

To find out whether the Cam is Good or Bad, you can do:

•Geometric Analysis

•Force / Stress Analysis


Geometric Analysis:

The Geometric Analysis reviews the:

•Cam Size

•Pressure Angle

•Radius-of-Curvature

•and Overturning-Moment for Flat-Faced Followers.

The cam's size, pressure-angle, and radius-of-curvature are related to each other. They are a function of the geometric layout of the cam mechanism, given a motion. It is critical that you review these parameters early in your cam design as they strongly influence the contact force and contact stress.

Force Analysis:

Before you can analyze the Contact-Force and Contact-Stress, the power must flow correctly from a Power-Source to the Tooling, via the Cam and Follower.

You must Configure the Power Source to make sure that the Power flows correctly.

See: Configure the Power Source for Payload Analysis

The Force Analysis reviews the:

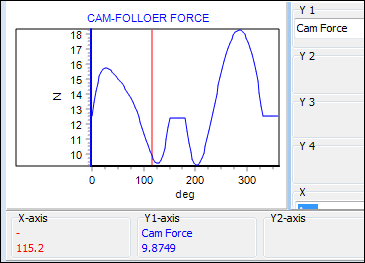

•Contact-Force - which we use to find the Life of the Follower-Roller.

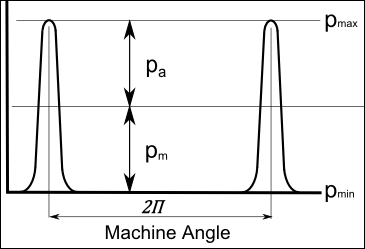

•Contact-Stress (Hertzian Stress) - which we use to find the Life of the Cam-Profile.
